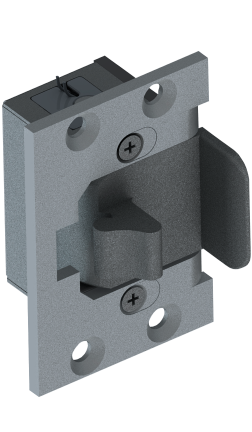

3250SOM Electric Strike

THE STRIKE-O-MATIC™

THE ELECTRIC STRIKE FOR THE DOR-O-MATIC™

323478LC the ANSI solution for cylindrical locks and all tight installs.

WARNING—IMPORTANT INSTALLATION REQUIREMENT:

To use the 3250SOM electric strike for access control, the bottom rod of the panic exit device must be disabled.

IMPORTANT: Before modifying the exit device, verify that disabling the bottom rod is permitted by the device manufacturer and complies with all applicable fire, life-safety, and building codes. Do not disable the bottom rod on a fire-rated assembly unless the modification is specifically approved for that application.

The only solution available for Dor-O-Matic™ locks.

The Vertical Rod solution utlizes the reliable 3000 series mechanism to offer the smallest solution on the market for vertical rods.

Downloadable content:

3250SOM Features:

Two faceplates provided in aluminum and dark bronze finish
GRADE 1 - Heavy Duty
500,000 + life cycles
Horizontal Adjustment
Solid stainless steel latch and locking mechanism
LC200 included for surge and kickback protection
Patented

3250SOM Electrical Characteristics:

Voltage	Current/Amps	Ohms (Ω)	Duty	Sound
12DC	0.420/0.280	N/A	Intm./Cont.	Silent
24DC	0.840/0.150	N/A	Intm./Cont.	Silent
^^^ MUST USE LC200 ON DC FOR ALL LC/RS UNITS ^^^
12AC	0.840	11.0	Intermittent	Buzz
16AC	1.200	11.0	Intermittent	Buzz
24AC	1.700	11.0	Intermittent	Buzz
^^^ DO NOT USE LC-200 FOR AC POWER - FOR AC POWER WIRE DIRECT TO 30LC MECHANISM ^^^

LC200:

This Model utilizes an external line conditioner (LC200) module to regulate input voltages, 11-28 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC200 provides current and voltage surge protection and kickback protection. LC200 must be used within 15' of the mechanism.
