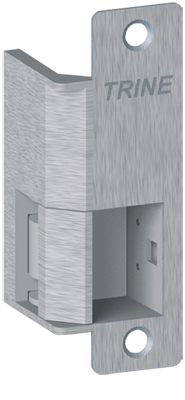

EN430 - Discontinued - November 2021


Use the 4100 Electric Strike for indoor offset - Use the EN400 or contact us to learn how you might be able to repair your EN430.


Cavity Centerline Offset 1" - For new or replacement installations in metal jambs. Use with cylindrical locksets and mortise lock latchbolts with up to 7/8” throw without relocating centerline. Based on 1/8” door gap.

Downloadable content:



EN430 Features:

  • Superior Strength -- 2,000+ lbs UL® tested.
  • Superior Life -- Durability of 1,000,000+ life cycles
  • Superior Application - Outdoor UL® rating allows the strike to be used anywhere.
  • Fail secure/Fail safe field reversible on DC units.
  • Grade 1 Strike -- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
  • Your go anywhere strike!

EN430 Specifications:

  • UL® Listed 10C - Fire-rated - Class A, 3-hour, single swing door
  • UL® Listed 1034 - Indoor/Outdoor Burglary Resistant
  • UL294 (6th Edition) listed
  • BHMA 156.31 2001, Grade 1
  • NYC MEA 79-01-E
Discontinued - November 2021

EN Series Electrical Characteristicss:   PoE Freindly

VoltsCurrentOhms (Ω)DutySoundWire
12AC0.7004.5Intm.Buzz1-Blue,
1-Orange/White
24AC0.37018.0Intm.Buzz1-Blue,
1-Black/White
12DC0.28043.0Intm./Cont.Silent2-Orange/White
24DC0.150164.0Intm./Cont.Silent2-Black/White

EN430 Available Finishes - Discontinued - November 2021

EN430-32D -- Satin Stainless Steel - BHMA630EN430-10B -- Dark Bronze - BHMA613
EN430-US3 -- Bright Brass -- BHMA605EN430-US4 -- Satin Brass -- BHMA606
EN430-10 -- Satin Bronze -- BHMA612EN430-32 -- Polished Chrome -- BHMA629
