INSTALLATION TOOL FOR


THE ONE BOX SOLUTION


FOR 4-7/8" & 2-3/4" STRIKES



Universal 4850 with 2 spacer plates.

ANSI-ITL

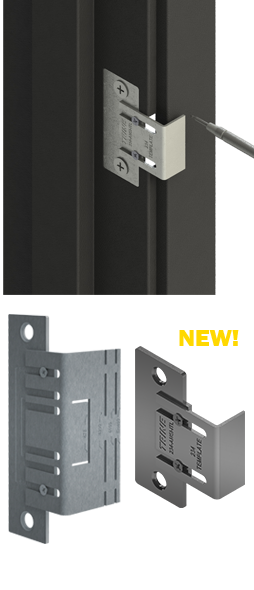

Installation Tool for all of Trine 4-7/8" and 2-3/4" mortised in electric strikes.



For accurate installations mounting the 4100, 410DBDL, 4200, EN, and 3000 Series electric strikes.

Downloadable content:


ANSI-ITL Features:

  • Use to install on all of Trine's 4-7/8" and 2-3/4" tall electric strikes.
  • Easily bolts to tabs (or screw holes) on frame.
  • Use the INCLUDED scribe to to mark lines.
  • 4-7/8" tool can be offset to accomadate Schlage L series cutouts for the 4100 or 4100DBDL.
  • 2-3/4" tool adjusts for the 234X 3000 series plate for Timely frames.
