EN Series Strikes


Trines line of UL® fire rated
& UL® Outdoor Rated Strikes


SIMPLE DESIGN -- UNPARALLELED CONSTRUCTION.
Simplicity - En Series strikes contain only 8 total parts, with 1 moving piece in the locking mechanism. Durability - Tested to Grade 1 Specification for Electric Strikes , 2,000+ lbs UL Tested, 1,000,000+ cycles. Versitility - EN Series is UL® Outdoor rated UL® Listed 10C Fire Rated to be used everywhere.

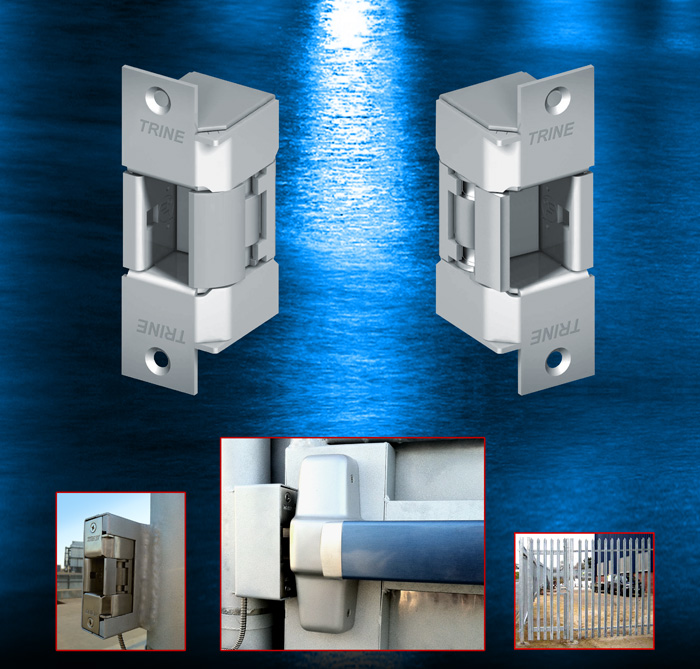

  The solution for gates and all outdoor applications -- try an EN series electric strike today.

↵ Back to Products Page

  For all new installations with Mortise or Cylindrical locks, or locks with a centerline bolt in a 4 7/8" ANSI prep, use the EN400. For 1" Offset mortise, or cylindrical, locks (often with the dead latching trigger on top of the bolt) use the EN430, . For 3/4" Offset mortise, or cylindrical, locks (often with the dead latching trigger below the bolt) use the EN435

  For surface mounted rim exit devices, especially with gates or outdoor situations, use the EN800 (3/4" thick faceplate) or EN850 (1/2" thick faceplate). Not fire rated.

  For Folger Adams 310-2 Cutout use EN950. For Folger Adams 310-2 3/4" Cutout use EN960. Both are also great for covering the holes in frames and gates from other strikes.
