4300 Electric Strike

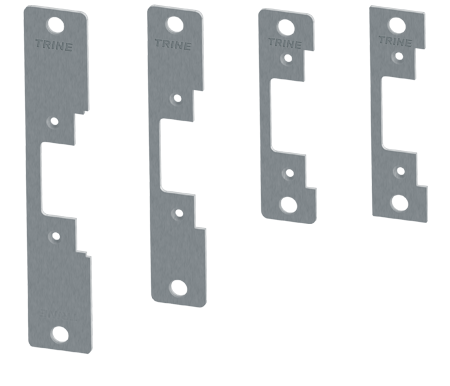

four faceplates for the 4300 electric strike
4 Faceplates Included.   4300 electric strike image with dimensions


The most flexible electric strike solution for cylindrical locks and deadlatches.


We include the 4 most used faceplates to make specifying and installing this electic strike easy on any frame, especially aluminum.

>>> 4300 Option with 2 faceplates?

Downloadable content:



4300 Electric Strike Features:

  • 1/4" Horizontal Adjustment -- The 4300 has a great 1/4" horizontal adjustment included. Some competitor models require you to buy a more expensive model to get the same flexibility.
  • Four popular faceplates included -- including the 4 most used faceplates for cylindrical lcoks and deadlatches
  • 1 - 1/16” Shallow backset -- the electric strike solves depth problems, as with glass store fronts.
  • Low Current Draw -- .240 Amp at 12DC makes it very PoE Friendly 12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need
  • The included trim skirt covers any gaps or irregularities on an install. Plus it matches the strike finish.
  • The 4300 electric strike latch solves the auxillery latchpin problems many other electric strikes run into.
  • Cutout Specification A115.1 (with Slight Jamb Modification)


Warnok Hershey Fire Rated Logo

Electric Strike Standards:

  • WH recognized for UL1034 Burglary Resistant
  • WH recognized for UL294 (6th Edition) listed
  • ANSI A156.5 - 1992 - 4-7/8" x 1-1/4" Fits
  • Grade 1 electric strike

4300 Electrical Characteristics:

VoltsCurrentOhms (Ω)DutySoundWire Color
12DC0.240 A50 ΩIntm./Cont.SilentBlue/Red
24DC0.114 A210 ΩIntm./Cont.SilentBrown/Red
12AC0.210 A50 ΩIntm.BuzzBlue/Red
16AC0.280 A50 ΩIntm.BuzzBlue/Red
24AC0.420 A50 ΩIntm.BuzzBlue/Red

When removing the connector and using the wires direct; Red Wire is Common, Blue Wire accepts 12DC & 12-16 AC, Brown Wire accepts 24DC.

4300 Available Finishes:



4300-32D
Satin Stainless Steel - BHMA630
4300-ALUM
Aluminum Powder Coat
4300-BLK
Black Powder Coat
4300-DKBZ
Dark Bronze Powder Coat


three ramp extensions for 4300 electric strike

4300 Ramp Extensions:


3 ramp extension sizes available: available as 1/4", 1/2" or 1" total. Order individual sizes.
Item Numbers;

  • 4300RX-25: 1/4" wide ramp
  • 4300RX-50: 1/2" wide ramp
  • 4300RX-100: 1" wide ramp


Need a custom width for your ramp? >>> Contact us!
