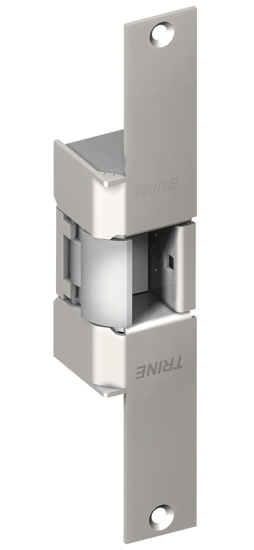

EN950 - FITS 310-2 CUTOUT


The original UL® Indoor/Outdoor and Fire Rated Electric Strike.


For new or replacement installations in metal or wood jambs. Use with mortise exit devices, mortise locks without deadbolts and cylindrical locksets with up to 7/8” throw. Based on 1/8” door gap.

Downloadable content:



EN950 Features:

  • Superior Strength -- 2,000+ lbs UL® tested.
  • Superior Life -- Durability of 1,000,000+ life cycles
  • Superior Application - Outdoor UL® rating allows the strike to be used anywhere - especially good for gates.
  • Fail secure/Fail safe field reversible on DC units.
  • Grade 1 Strike -- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
  • Left and Right handing is field reversible.
  • Your go anywhere strike!

EN950 Specifications:

  • UL® Listed 10C - Fire-rated - Class A, 3-hour, single swing door
  • UL® Listed 1034 - Indoor/Outdoor Burglary Resistant
  • UL294 (6th Edition) listed
  • BHMA 156.31 2001, Grade 1
  • NYC MEA 79-01-E

EN Series Electrical Characteristicss:   PoE Freindly

VoltsCurrentOhms (Ω)DutySoundWire
12AC0.7004.5Intm.Buzz1-Blue,
1-Orange/White
24AC0.37018.0Intm.Buzz1-Blue,
1-Black/White
12DC0.28043.0Intm./Cont.Silent2-Orange/White
24DC0.150164.0Intm./Cont.Silent2-Black/White

EN950 Available Finishes

EN950-32D -- Satin Stainless Steel - BHMA630EN950-10B -- Dark Bronze - BHMA613
EN950-US3 -- Bright Brass -- BHMA605EN950-US4 -- Satin Brass -- BHMA606
EN950-10 -- Satin Bronze -- BHMA612EN950-32 -- Polished Chrome -- BHMA629





How to Order:


  Please provide the following information to ensure you receive the CORRECT electric strike.
  Model #   LB Option?   Voltage   Finish Handling
example: 950 LB 12DC 32D RH

  Or, 950LB-12DC-32D-RH. Without the the LB option (Latchbolt monitoring) - the example would read: 950-12DC-32D-RH

  Fail Safe Request: Please add “RS” to item#
  EX: 950LBRS-12DC-32D-RH or 950RS-12DC-32D-RH as an example without the Latchbolt Monitoring option.
