THE ONE BOX SOLUTION

---

FOR RIM PANIC EXIT DEVICES

1/2" Surface mounted electric strike for Rim Panic Devices.

The most flexible electric strike for use with surface mounted rim exit devices with up to 1" (6 different thicknesses altogether).

Need a fire rated surface mount strike you can install every day? Use the 4800F

The 4850 electric strike is Build America, Buy America Act (BABAA) and Buy American Act (BAA) qualified. BABAA Page

Downloadable content: 4850 Instruction Sheet (pdf) 4850 Dimensions (pdf)

Enhanced 4850 Features:

• 1/2" thick Surface Mount electric strike comes with 1/4" and two (2) 1/16" Spacers plates -- the most versatile rim panic strike provides the flexibility of 6 different sizes!
• The electric strike Cavity is completely open -- which means the 4850 allows for an incremental depth up to a 1" throw -- competitor backplates do not allow for this versatility.
• Comes with Trines Patented 6-Pin Anchoring System
• Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
• Fail-safe/Fail-secure (field selectable).
• Grade 1 Electric Strike -- 1,000,000+ Life cycles -- 1,500+ lbs. Holding Force
• No cutting or worrying about voltage means you are always prepared.
• Everyday Low Current Draw
• For a fire rated rim panic strike use the 4800F

4800F Standards:

• UL LISTED - 1034 Burglary Resistant
• UL294 (6th Edition) listed

Enhanced 4850 Electrical Characteristics: (DC Only)  ^™

Voltage	Amps	Wire Color	Duty	Sound
12DC	0.218	Red & Blue	Intm./Cont.	Silent
16DC	0.290	Red & Blue	Intm./Cont.	Silent
24DC	0.195	Brown & Blue	Intm./Cont.	Silent

4850 Available Finishes

4850-32D Satin Stainless Steel - BHMA630	4850-10B Dark Bronze - BHMA613 4850-10B finish is discontinued - please use 4850DKBZ
4850-US3 Bright Brass -- BHMA605	4850-US4 Satin Brass -- BHMA606
4850-10 Satin Bronze -- BHMA612	4850-32 Stainless Steel -- BHMA651
4850-DKBZ Dark Bronze Powder Coat	4850-BLK Black Powder Coat *NEW*

---

4850LB:

Need latchbolt monitoring for your Axion 4850 go to the   ⇒ 4800 Series Accessories Page

---

4800-SS & 4850-SS - Extra Steel Spacer Plates:

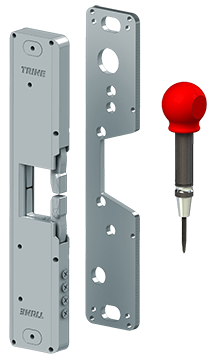

We supply one (1) 1/4" plate and two (2) 1/16" thick spacer plates in the box, for those installations that require mounting the strike closer to the panic bar. In addition, the spacer plates can be used as a template during installation. This is especially helpful when installing Trines patented anchoring system. You can order an additional 1/4" Spacer plate with part # 4850-SS or two (2) 1/16" Spacer plate with part number 4800-SS.

---

Fits in Tight Installs like Glass.	Everyday Low Current Draw	Install Securely with our Patented Anchor Pin System
