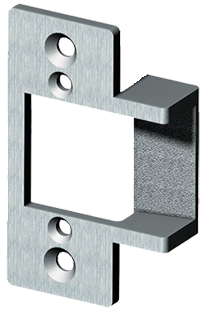

234 ANSI faceplate

For new or replacement installations in metal frames. Use with cylindrical locksets having up to 5/8” throw, based on 1/8” door gap.

Downloadable content: 234 Catalog Page (pdf) 234 Dimensions (pdf) 234 Metal Frame Prep (pdf) 234 Wood Frame Prep (pdf) 234/478 Compare Cutting (pdf)

234 Features:

• The smallest faceplate for the smallest electric strike in the world.
• Grade 1 ANSI Solution.
• 80% less cutting of the frame.
• Fits 2-3/4" t-strike cutouts (with modification)
• Modular System: Always be prepared, go Modular. Use ANY of the 9 faceplates in the 3000 series with any ⇒ 3012, 3024, 30LC or 30RS mechanism

234 Available Finishes

234-26D -- Satin Chrome (BHMA651)	234-US4 -- Satin Brass (BHMA606) Finish is discontinued
234-10B -- Dark Bronze (BHMA640)	234-US3 -- Bright Brass (BHMA605) Finish is discontinued
