THE DEADLATCH SOLUTION


SMALLEST ELECTRIC STRIKE IN THE WORLD



3258458lc deadlatch electric strike

3258458LC Electric strike for deadlatches


ONLY A 1" TOTAL BACKSET


Contains the three (3) most commonly used faceplates for deadlatches along with the smallest electric strike in the world into one kit. The best item to have when working with deadlatches.

Downloadable content:


3258458LC Features:

  • GRADE 1
  • 500,000 + life cycles

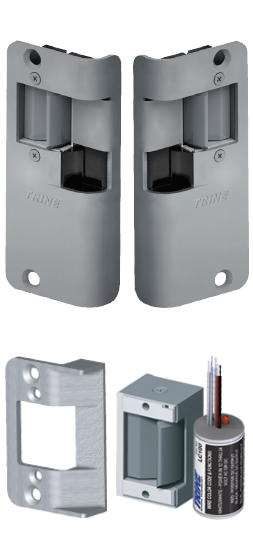

  • Includes the 258 faceplate, the 458-LH (left hand), and 458-RH (right hand) faceplates. Plus the 30LC (mechanism plus lin conditioner).
  • Solid stainless steel latch and locking mechanism

3258458LC Electrical Characteristics:

VoltageCurrent/AmpsOhms (Ω)DutySoundWire Color
12DC0.743/0.29813.0Intm./Cont.SilentRed
12AC0.715/0.27713.0Intm./Cont.SilentRed
24DC0.397/0.17013.0Intm./Cont.SilentRed
24AC0.378/0.17313.0Intm./Cont.SilentRed

LC100:

This Model utilizes an external line conditioner (LC100) module to regulate input voltages, 11-28 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection. LC100 must be used within 15' of the mechanism.
