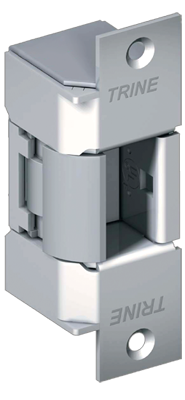

EN400 Premium Electric Strike

The only UL^® Indoor/Outdoor, Burglary, and Fire Rated Electric Strike in the industry.

For new or replacement installations in wood or metal jambs. Use with cylindrical locksets, mortise locks without dead bolts, and mortise exit devices with up to 7/8” throw.

** New ** Outdoor Rim Panic Solution -> EN400RP

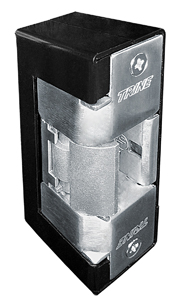

Downloadable content: EN Series Catalog (pdf) EN400 Dimensions (pdf) EN400-Gatebox Dimensions (pdf) EN400 Frame Prep (pdf)

EN400 Features:

• Superior Strength -- 2,000+ lbs UL® tested.
• Superior Life -- Durability of 1,000,000+ life cycles
• Superior Application - Outdoor UL^® rating allows the strike to be used anywhere - especially good for gates.
• Fail secure/Fail safe field reversible on DC units.
• Grade 1 Strike -- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
• Left and Right handing is field reversible.
• Your go anywhere strike!

EN400 Specifications:

• UL® Listed 10C - Fire-rated - Class A, 3-hour, single swing door
• UL® Listed 1034 - Indoor/Outdoor Burglary Resistant
• BHMA 156.31 2001, Grade 1
• NYC MEA 79-01-E

EN Series Electrical Characteristics:

Volts	Current	Ohms (Ω)	Duty	Sound	Wire
12AC	0.700	4.5	Intm.	Buzz	1-Blue, 1-Orange/White
24AC	0.370	18.0	Intm.	Buzz	1-Blue, 1-Black/White
12DC	0.280	43.0	Intm./Cont.	Silent	2-Orange/White
24DC	0.150	164.0	Intm./Cont.	Silent	2-Black/White

EN400 Available Finishes

EN400-32D Satin Stainless Steel - BHMA630	EN400-10B Dark Bronze - BHMA640
EN400-US3 Bright Brass -- BHMA605	EN400-US4 Satin Brass -- BHMA606
EN400-10 Satin Bronze -- BHMA612	EN400-26 Bright Chrome -- BHMA651
