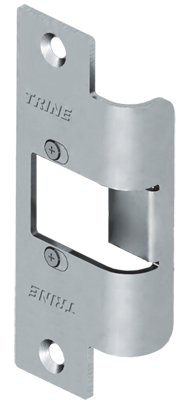

478 Faceplate: 1/8” Horizontal adjustment feature.

The Adjustable Faceplate

For new or replacement installation in wood, metal or aluminum frames. Use with cylindrical locksets having up to 5/8” throw, based on 1/8” door gap. 60% LESS CUTTING of Frame Face for ANSI 4 7/8” pre-prep frames.

New 478-CCFP -> See Below

Downloadable content: 478 Catalog Page (pdf) 478 Dimensions (pdf) 478 Metal Frame Prep (pdf) 478 Wood Frame Prep (pdf) 3234/3478 Compare Cutting (pdf)

478 Features:

• No ugly black ramps!
• This faceplate as been upgraded with a 1/8” Horizontal adjustment feature.
• Grade 1 - Your ANSI Solution.
• 60% less cutting of the frame.
• Modular System: Always be prepared, go Modular. Use ANY of the 9 faceplates in the 3000 series with any ⇒ 3012, 3024, 30LC or 30RS mechanism

478 Available Finishes

478-32D -- Satin Stainless Steel (BHMA630)	478-US3-- Bright Brass (BHMA605)	478-US4 -- Satin Brass (BHMA606)
478-10B -- Powder Coat Dark Bronze	478-32 -- Stainless Chrome (BHMA651)

---

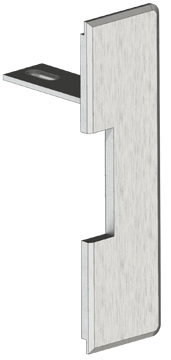

478-CCFP

Competitor Cutout Filler Plate

Stainless plate designed to fill in the hole left by competitor models.
←
