4100CDBM Electric Strike



THE ONE BOX SOLUTION


FOR MORTISE LOCKS WITH OR WITHOUT DEADBOLTS




4100cdbm electric strikes for mortise and cylindrical locks

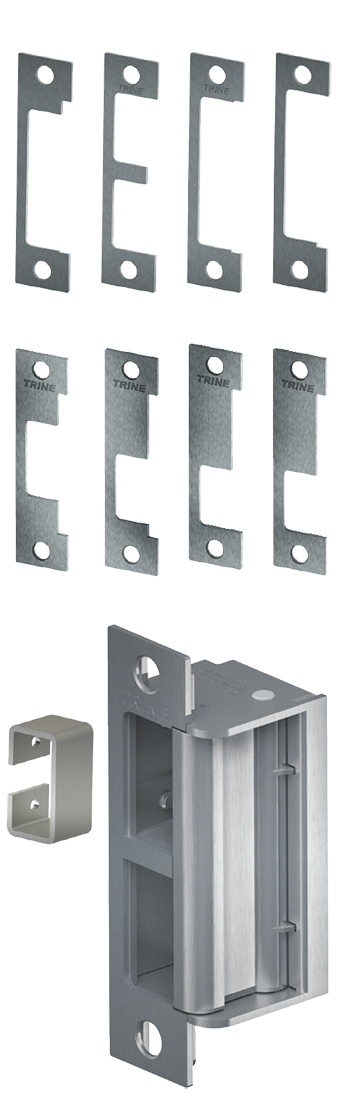

8 Faceplates Included!!



The Everything Strike - Works with almost all Cylindrical and Mortise locks on the market.


We include the 8 most used faceplates to make specifying and installing easy

Covers 99% of all Cylindrical & Mortise Lock configurations plus faceplates can be kept & used to help accomodate for door sag.

4100 Features:

  • Grade 1 Electric Strike -- heavy duty construction, 1,000,000+ Life cycles -- 3,250+ lbs. Holding Force
  • Eight popular faceplates included -- The most used faceplates in the box makes specifying and installing this electric strike easy Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accomodate for door sag.
  • Low Current Draw -- .240 Amp at 12DC makes it very PoE Friendly 12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need
  • Patented # US20110241361
  • Cutout Specification A115.1 (with Slight Jamb Modification)

Standards:

Warnok Hershey Fire Rated Logo
  • Class A, 3 Hour fire rated single door / frame configuration
  • WH recognized for UL10C, Fire Tests of Door Assemblies
  • UBC 7-2, Uniform building Code
  • CAN4 S104, Standard Method for Fire Tests of Door Assemblies
  • NFPA 252 - Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies
  • NOTE: WH fire listing is void when using fail safe action.
  • UL LISTED - 1034 Burglary Resistant
  • UL294 (6th Edition) listed
  • ANSI A156.5 - 1992 - 4-7/8" x 1-1/4" Fits

4100CDBM Electrical Characteristics:

VoltsCurrentOhms (Ω)DutySoundWire Color
12DC0.240 A50 ΩIntm./Cont.SilentBlue/Red
24DC0.114 A210 ΩIntm./Cont.SilentBrown/Red
12AC0.210 A50 ΩIntm.BuzzBlue/Red
16AC0.280 A50 ΩIntm.BuzzBlue/Red
24AC0.420 A50 ΩIntm.BuzzBlue/Red

When removing the connector and using the wires direct; Red Wire is Common, Blue Wire accepts 12DC & 12-16 AC, Brown Wire accepts 24DC.>

4100CDBM Available Finishes

4100CDBM-BLK
Black Powder Coat

4100CDBM-32D
Satin Stainless Steel - BHMA630
4100CDBM-10B
Dark Bronze - BHMA613
4100CDBM-US3
Bright Brass -- BHMA605
4100CDBM-US4
Satin Brass -- BHMA606
4100CDBM-10
Satin Bronze -- BHMA612
4100CDBM-32
Stainless Steel -- BHMA651
