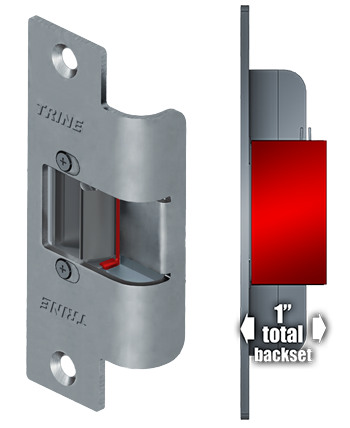

THE 3478F Electric Strike

The fire rated 4-7/8" cylindrical solution.

The 3478F streamlines the heavy duty 3000 fire rated series by offering only one faceplate... the most popular 4-7/8" ANSI.

The 323478F electric strike is Build America, Buy America Act (BABAA) and Buy American Act (BAA) qualified. BABAA Page

3478F Features:

• Tested to Grade 1 Specification for Electric Strikes - Heavy Duty

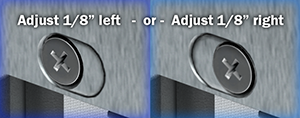

• 1/8" Horizontal adjustment on the 478 faceplates.

• All solid stainless construction.
• Three voltage options to choose from:
  • 3478F-12DC
  • 3478F-24DC
  • 3478F-LC - LC100 included
  • 3478F-RS - LC100 included/Fail Safe is not Fire Rated**
• Patent Pending
• Not for outdoor Use.

Standards:

• Class A, 3 Hour fire rated single door / frame configuration
• WH recognized for UL10C, Fire Tests of Door Assemblies
• UBC 7-2, Uniform building Code
• CAN4 S104, Standard Method for Fire Tests of Door Assemblies
• NFPA 252 - Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies
• NOTE: WH fire listing is void when using fail safe action**

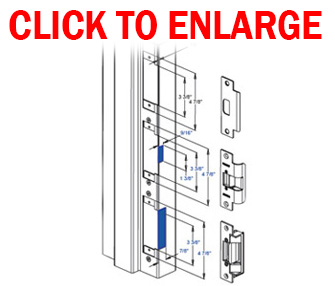

Compare Cutting:

• Top: Standard Door Strike Plate
• Middle: Trines 3478F Faceplates Require up to 60% less cutting.
• Bottom: Their strike requires extensive cutting of the frame.

3478-12DC and 3478-24DC Electrical Characteristics:

Item	Voltage	Current/Amps	Ohms (Ω)	Duty	Sound	Wire Color
3012	12DC	0.480	25.0	Intm.	Silent	Blue
3024	24DC	0.240	100.0	Intm.	Silent	White

3478LC and 3478RS Electrical Characteristics:

Voltage	Current/Amps	Ohms (Ω)	Duty	Sound
12DC	0.420/0.280	N/A	Intm./Cont.	Silent
24DC	0.840/0.150	N/A	Intm./Cont.	Silent
^^^ MUSE USE LC200 ON DC FOR ALL LC/RS UNITS ^^^
12AC	0.840	11.0	Intermittent	Buzz
16AC	1.200	11.0	Intermittent	Buzz
24AC	1.700	11.0	Intermittent	Buzz
^^^ DO NOT USE LC-200 FOR AC POWER - FOR AC POWER WIRE DIRECT TO 30LC MECHANISM ^^^

---

LC200 - (Rectangle unit; Updated in 2024; replaces LC100):

This electric strike utilizes an external line conditioner (LC200) module to regulate DC input voltages, DC only, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC200 provides current and voltage surge protection and kickback protection. LC200 must be used within 15' of the mechanism for DC only. For AC power wire low voltage power direct to the mechanism.

Downloadable content:
c		478 Dimensions (pdf)		3000 Unit Dimensions (pdf)
478 Wood Frame Prep (pdf)		478 Metal Frame Prep (pdf)
