INSTALLATION TOOL FOR

THE ONE BOX SOLUTION

---

FOR RIM PANIC EXIT DEVICE

4850-ITL

Installation Tool for the 4850

For accurate installations mounting the 4800F, 4850, 4850-PoE, 4850-LCD, and 4850-LB models.

Downloadable content: 4850ITL Catalog page (pdf) 4850 Dimensions (pdf) 4850 Sell Sheet (pdf)

4850-ITL Features:

• Tool Attaches magnetically to Metal Frames.

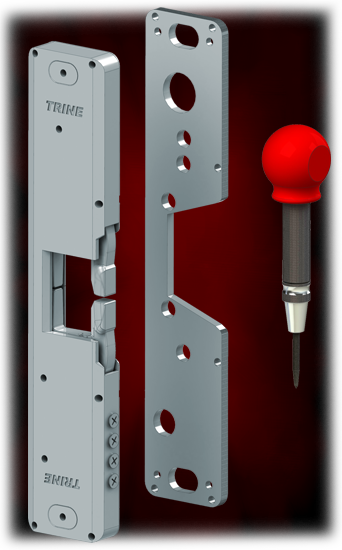

• Not "just a template", the 4850ITL uses the body of a 4850 electric strike with working latches to provide the most accurate tool for the job.
• The Installation Tool lets you "feel the door" on the frame.
• Adjust the Strike BEFORE you drill.
• Comes with a Custom Center Punch tool to accurately mark Anchoring Pin, Bolt, Wire, and LB wire locations.
• 1/4" Spacer is used with the Installation Tool when a 3/4" strike is needed.
• US Patent No. 9,376,835
