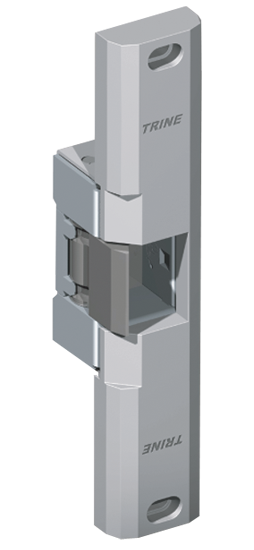

EN800 Premium Electric Strike

Great for outdoor gates.

For new or replacement installations in wood or metal jambs. Use with with most rim panic exit devices. 3/4” Thick Faceplate.

The EN800 electric strike is Build America, Buy America Act (BABAA) and Buy American Act (BAA) qualified. BABAA Page

Downloadable content: EN 800 Catalog page (pdf) EN800 Dimensions (pdf) EN800 Frame Prep (pdf)

EN800 Features:

• Superior Strength -- 2,000+ lbs UL® tested.
• Superior Life -- Durability of 1,000,000+ life cycles
• Superior Application - Outdoor UL^® rating allows the strike to be used anywhere - especially good for gates.
• For a version that can be used with a Gatebox and mounted anywhere, check out the EN400RP
• Fail secure/Fail safe field reversible on DC units.
• Grade 1 Strike -- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
• Left and Right handing is field reversible.
• Your go anywhere strike!

EN800 Specifications:

• UL® Listed 1034 - Indoor/Outdoor Burglary Resistant
• UL294 (6th Edition) listed
• BHMA 156.31 2001, Grade 1
• NYC MEA 79-01-E
• Not Fire Rated

EN Series Electrical Characteristicss:

Volts	Current	Ohms (Ω)	Duty	Sound	Wire
12AC	0.700	4.5	Intm.	Buzz	1-Blue, 1-Orange/White
24AC	0.370	18.0	Intm.	Buzz	1-Blue, 1-Black/White
12DC	0.280	43.0	Intm./Cont.	Silent	2-Orange/White
24DC	0.150	164.0	Intm./Cont.	Silent	2-Black/White

EN800 Available Finishes

EN800-32D -- Satin Stainless Steel - BHMA630	EN800-10B -- Dark Bronze - BHMA613
EN800-US3 -- Bright Brass -- BHMA605	EN800-US4 -- Satin Brass -- BHMA606
EN800-10 -- Satin Bronze -- BHMA612	EN800-32 -- Polished Chrome -- BHMA629

---

How to Order:

  Please provide the following information to ensure you receive the CORRECT electric strike.

	Model #	LB Option?	Voltage	Finish	Handling
example:	800	LB	12DC	32D	RH

  Or, 800LB-12DC-32D-RH. Without the the LB option (Latchbolt monitoring) - the example would read: 800-12DC-32D-RH

  Fail Safe Request: Please add “RS” to item#
  EX: 800LBRS-12DC-32D-RH or 800RS-12DC-32D-RH as an example without the Latchbolt Monitoring option.
