323478FX-LC Electric Strike



THE 323478FX-LC KIT


SMALLEST FIRE RATED ELECTRIC STRIKE FOR TIMELY AND REDI FRAMES



323478LC the ANSI solution for cylindrical locks and all tight installs.
323478LC the ANSI solution for cylindrical locks and all tight installs.

The fire rated timey frame and redi frame electric strike solution.

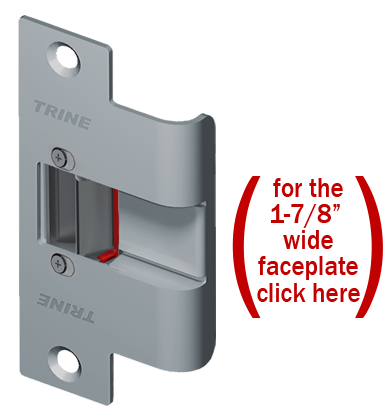

We made our small, versatile, fit anywhere 323478x kit FIRE RATED. This is the smallest electric strike that fits both Timely and Redi frame ansi cutouts.

This electric contains the Extended 478X with a 2-1/4" ramp - for the kit with the standard 478 faceplate with a 1-7/8" ramp go to: 323478F-LC electric strike


323478F-LC electric strike Features:

  • 3 Hour Fire Rated
  • GRADE 1

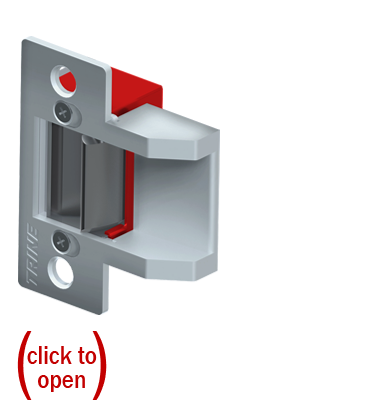

  • 1/8" Horizontal adjustment on both the 478X faceplates as well as the 234 faceplates.
  • 12-24 AC and DC - Surge and Kickback protection included.
  • All solid stainless steel construction.
  • Includes:
    • One (1) 234-234X Adjustable Faceplate
    • One (1) 478-32D Faceplate
    • One (1) 30LC Fire Rated Mechanism
    • One (1) 478-CCFP (Competitor Filler Plate)
  • Click for the 323478FX-LC List Price!
  • Fail-safe - RS - option available. Note; fail safe always voids the fire rating on all electric strikes.
  • Patented

Compare Cutting:

  • Top: Standard Door Strike Plate
  • Middle: Trines 323478FLC Faceplates Require up to 60% less cutting and the 234 requires up to 80% less cutting.
  • Bottom: Their strike requires extensive cutting of the frame.

323478LC Electrical Characteristics:

VoltageCurrent/AmpsOhms (Ω)DutySoundWire Color
12DC0.743/0.29813.0Intm./Cont.SilentRed
12AC0.715/0.27713.0Intm./Cont.SilentRed
24DC0.397/0.17013.0Intm./Cont.SilentRed
24AC0.378/0.17313.0Intm./Cont.SilentRed

LC100:

This Model utilizes an external line conditioner (LC100) module to regulate input voltages, 11-28 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection. LC100 must be used within 15' of the mechanism.
