Original 4800 with 1 spacer plates.
1/8" Spacer Included.

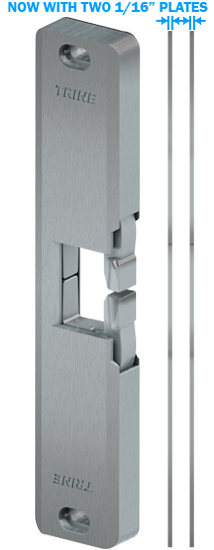

THE 4800F


FIRE RATED FOR FREE


3 Hour fire rated electric strike for use with surface mounted rim exit devices with 3/4" (or greater) throw. For use in new or replacement installations in wood or metal single door frames.

Note: The 4800F item number replaces the 4800.

You expect fire rating on electric strikes for mortise locks... why not on electric strikes for Rim Panics?


Downloadable content:



4800F Features:

  • For the less than the competitions non-fire rated electric strike, use the Fire Rated 4800F on all your installations. Feel secure in your installs and your specs and take the risk out of needing to install a fire rated electric strike later. For a lower price, why wouldn't you put in a fire rated electric strike?
  • The cavity is completely open -- which means the 4800F allows for a full 3/4" depth and upto a 1" throw with the included two (2) spacer plates -- competitor backplates do not allow for this versatility.
  • Built-in electronics automatically allow 11 thru 28 AC & DC Voltage input -- with surge and kickback protection
  • Comes with Trines ⇒ Patented 4-Pin Anchoring System.
  • Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
  • Fail-safe/Fail-secure - field selectable (Like all electric strikes, it is not fire rated in Fail safe mode).
  • BHMA Grade 1 Electric Strike -- 1,500,000+ Life cycles -- 3,000+ lbs. Holding Force
  • No cutting or worrying about voltage means you are always prepared.

4800F Standards:

Warnok Hershey Fire Rated Logo
  • Class A, 3 Hour Single door / frame configuration
  • - UL10C, Fire Tests of Door Assemblies
  • - UBC 7-2, Uniform building Code
  • - CAN4 S104, Standard Method for Fire Tests of Door Assemblies NFPA 252
  • Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies
  • NOTE: WH fire listing is void when using fail safe action.
  • BHMA Grade 1 Electric Strike -- 1,500,000+ Life cycles -- 3,000+ lbs. Holding Force

4800F Electrical Characteristics: "Just Plug and Play"

VoltagePull In/Holding
Current/Amps
DutySound
12DC0.566/0.217Intm./Cont. Silent
24DC0.253/0.099Intm./Cont. Silent
12AC0.509/0.181Intm./Cont. Silent
16AC0.405/0.149Intm./Cont. Silent
24AC0.215/0.087Intm./Cont. Silent

4800F Available Finishes

4800F-32D
Satin Stainless Steel - BHMA630
4800F-10B
Dark Bronze - BHMA613
4800F-US3
Bright Brass -- BHMA605
4800F-US4
Satin Brass -- BHMA606
4800F-10
Satin Bronze -- BHMA612
4800F-32
Stainless Steel -- BHMA651
4800F-DKBZ
Dark Bronze Powder Coat


4800FLB:

Please note, currently the 4800FLB is not fire rated. If you need latchbolt monitoring for your 3/4" 4800F electric strike go to   ⇒ The 4800 Series Accessories Page

4800-SS & 4850-SS - Extra Steel Spacer Plates:

We supply two (2) 1/8" thick spacer plates in the box for the 4800F fire rated electric strike for those installations that require mounting the strike closer to the panic bar. In addition, the spacer plates can be used as a template during installation. This is especially helpful when installing Trines patented anchoring system. You can order an additional 1/4" Spacer plate with part # 4850-SS or 1/8" Spacer plate with part number 4800-SS.

Install Securely with our Patented 4-pin Anchor System3/4" thick and an 1/8" spacer plate.
4800 and Trine Patented 4-pin anchoring system 4800 Mini Dimensions
