THE 323478F-LC KIT

---

SMALLEST FIRE RATED ELECTRIC STRIKE IN THE WORLD

The fire rated cylindrical and deadlatch electric strike solution.

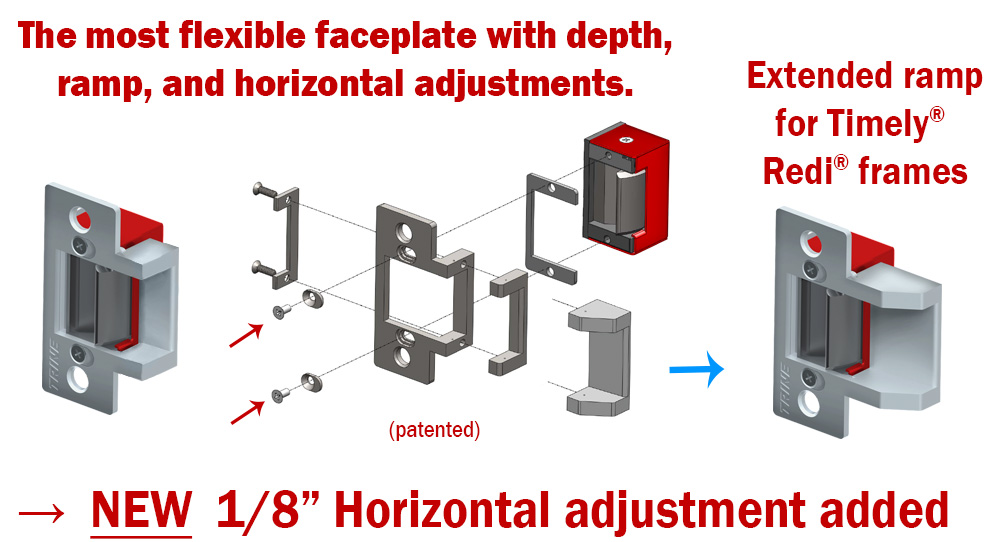

We made our small, versatile, fit anywhere 323478 kit FIRE RATED. Making it the smallest fire rated electric strike solution that goes where other electric strikes cannot. We've also added the Patented horizontal adjustment feature -- Guaranteed not to move -- to both the small and tall faceplates. This is the "do more" and "cut less" electric strike you've been looking for.

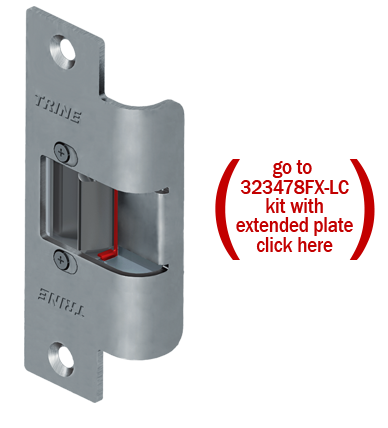

This electric strike contains the standard 478 faceplate with a 1-7/8" ramp - for the kit with the Extended 478X with a 2-1/4" ramp go to: 323478FX-LC Electric strike

The 323478F electric strike is Build America, Buy America Act (BABAA) and Buy American Act (BAA) qualified. BABAA Page

The 323478F electric strike is Build America, Buy America Act (BABAA) and Buy American Act (BAA) qualified

323478F-LC Electric Strike Features:

• 3 Hour Fire Rated
• GRADE 1

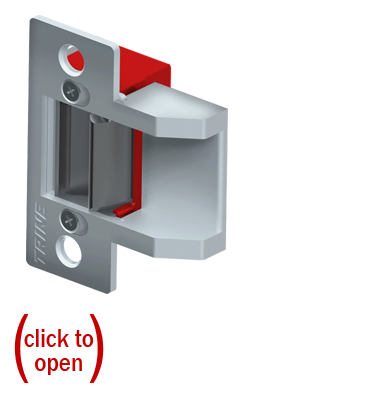

• 1/8" Horizontal adjustment on both the 478 faceplates as well as the 234 faceplates.
• 12 and 24 AC and DC - Use LC200 for DC only. For AC power wire low voltage power direct to strike
• All solid stainless construction.
• Includes:
  • One (1) 234-234X Adjustable Faceplate
  • One (1) 478-32D Faceplate
  • One (1) 30LC Fire Rated Mechanism
  • One (1) 478-CCFP (Competitor Filler Plate)
• Click for the 323478F-LC List Price!
• Fail-safe - RS - option available. Note; fail safe always voids the fire rating on all electric strikes.**
• Patented

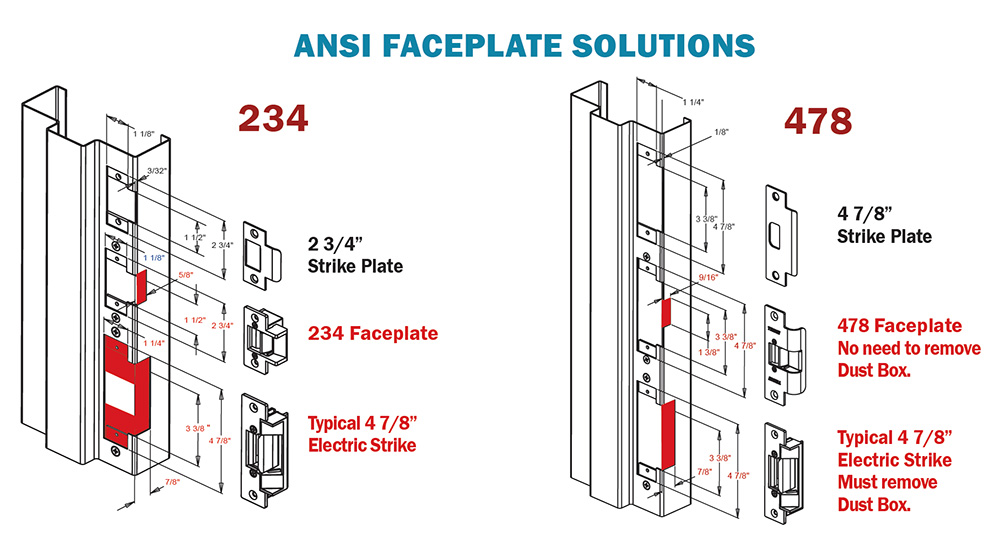

Compare Cutting:

• Top: Standard Door Strike Plate
• Middle: Trines 323478FLC electric strike requires up to 60% less cutting and the 234 requires up to 80% less cutting.
• Bottom: Their electric strike requires extensive cutting of the frame.

323478LC Electrical Characteristics:

Voltage	Current/Amps	Ohms (Ω)	Duty	Sound
12DC	0.420/0.280	N/A	Intm./Cont.	Silent
24DC	0.840/0.150	N/A	Intm./Cont.	Silent
^^^ MUSE USE LC200 ON DC FOR ALL LC/RS UNITS ^^^
12AC	0.840	11.0	Intermittent	Buzz
16AC	1.200	11.0	Intermittent	Buzz
24AC	1.700	11.0	Intermittent	Buzz
^^^ DO NOT USE LC-200 FOR AC POWER - FOR AC POWER WIRE DIRECT TO 30LC MECHANISM ^^^

**323478F-RS - Fail Safe (RS) is not Fire Rated **

---

LC200 - (Rectangle unit; Updated in 2024; replaces LC100):

This electric strike utilizes an external line conditioner (LC200) module to regulate DC input voltages, DC only, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC200 provides current and voltage surge protection and kickback protection. LC200 must be used within 15' of the mechanism for DC only. For AC power wire low voltage power direct to the mechanism.

---

Downloadable content:
323478F-LC Instruction Sheet		234 Dimensions (pdf)		234 Metal Frame Prep (pdf)
323478F Sell Sheet (pdf)		478 Dimensions (pdf)		3000 Unit Dimensions (pdf)
478 Wood Frame Prep (pdf)		478 Metal Frame Prep (pdf)		234 Wood Frame Prep (pdf)
