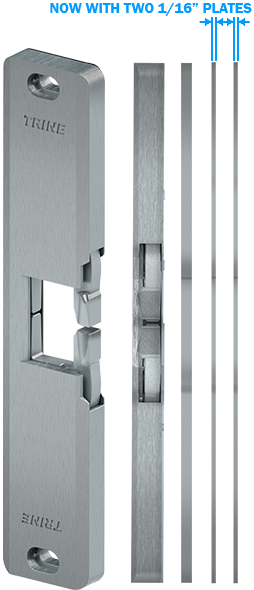

Universal 4850 with 2 spacer plates.

Poe Freindly -- Low Current Draw
Low Current Draw

The Low Current Draw 4850LCD


Surface mounted strike for Rim Panic Devices.


This low current draw strike is perfect for every day access control system and automatic door installations. The lower current draw allows for a smaller power supply, or allows use of an operator, which saves you money.

Downloadable content:



4850-LCD Features:

  • .135 Amps @ 24DC uses 3.24 Watts.
  • Reduce the number of installations that need a separate power supply for door hardware or add more devices to your system.
  • Increase UPS up time due to lower current draw.
  • 1/2 thick Surface Mount that comes with a 1/4 and a 1/8 Spacer -- this provides the flexibility of up to 4 different sizes!
  • Cavity is completely open -- which means the 4850 allows for an incremental depth up to a 1" throw -- competitor backplates do not allow for this versatility.
  • Comes with Trines Patented 6-Pin Anchoring System. more info ->
  • Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
  • Fail-safe/Fail-secure (field selectable).
  • BHMA Grade 1 Electric Strike -- 1,000,000+ Life cycles -- 1,500+ lbs. Holding Force
  • No cutting of the frame.

4850-LCD Electrical Characteristics:   PoE Freindly

VoltageAmpsWattsDutySound
24DC (only)0.1353.24Intm./Cont. Silent

4850-LCD Available Finishes

4850LCD-32D
Satin Stainless Steel - BHMA630
4850LCD-10B
Dark Bronze - BHMA613
4850LCD-US3
Bright Brass -- BHMA605
4850LCD-US4
Satin Brass -- BHMA606
4850LCD-10
Satin Bronze -- BHMA612
4850LCD-32
Stainless Steel -- BHMA651
4850LCD-DKBZ
Dark Bronze Powder Coat



4850LCDLB:

Need latchbolt monitoring for your Axion 4850PoE go to the   ⇒ 4800 Series Accessories Page

4800-SS & 4850-SS - Extra Steel Spacer Plates:

We supply an 1/8" thick spacer plate for those installations that require mounting the strike closer to the panic bar. In addition, the spacer plates can be used as a template during installation. This is especially helpful when installing Trines patented anchoring system. You can order an additional 1/4" Spacer plate with part # 4850-SS or 1/8" Spacer plate with part number 4800-SS. Note that 4850 Strike comes with both a 1/8" and a 1/4" plate already.


Fits in Tight Installs like Glass.Install Securely with our Patented Anchor Pin System
4850 and Aluminum Doors 4850 and Trine Patented 4-pin anchoring system
